Custom Mounting Solution Examples
Overhead Dual Monitor and Keyboard Mount
Versatile Suspended Mounting with Inverted Flange Base
Versatile Overhead Mounting with Inverted Flange Base
Utilized by an industry leading US-based parts distributor, this unistrut-mounted computer workstation solution is secured above packaging stations, optimizing the work envelope. It is configured with two stacked monitors and includes mounting hardware for a thin client CPU positioned behind the displays. This particular overhead mounting design is just one of the numerous versatile mounting solutions offered by Ergomart. Such solutions are highly advantageous in industrial settings where maximizing open floor space is a priority.
Call 888 420 3200 or email [email protected]
Retractable Connect Mounting System
Suspended Pole System for Streamlined Multi-Monitor Setup
Suspended Pole System for Streamlined Multi-Monitor Setup
Designed for a Theater Control Booth, this semicircular array positions monitors just above eye level, enabling seamless shifting of focus between the displays and the stage below. The monitor arrays can be conveniently retracted along the roller track to either side, fully opening up the view to the area being observed. This design is not only appropriate for theater operations but also lends itself well to industrial control workstations and security monitoring environments. The retraction feature coupled with the Ergomart Connect product line’s multi-monitor mounting capability showcases a perfect blend of functionality and workspace optimization.
Call 888 420 3200 or email [email protected]
Cabinet-Mounted Arm for HD Touchscreen
Swift Vertical Repositioning for Diverse Industrial Needs
Swift Vertical Repositioning for Diverse Industrial Needs
A preeminent US-based appliance manufacturer required a touchscreen interface that could extend down and around a large hanging control cabinet. This functionality was a crucial element in realizing a fully optimized quality control and testing process. Workers effortlessly lower the interface for short intermittent data entry sessions, then raise and reposition it to align flush with the bottom side of the control cabinet.
Call 888 420 3200 or email [email protected]
Versatile Rail Travel Solution
Efficient Wire Management for Smooth Repositioning Along the Track
Efficient Wire Management for Smooth Repositioning Along the Track
This design facilitated the mounting of two large, heavy 85" monitors on a roller track situated behind a proscenium arch, positioning the displays in the upper left and right corners of the stage area when in use. Pocket walls on either side enabled swift and silent retraction of the monitors out of sight. The inclusion of drag chains and a support channel ensured neat management of all power and signal cabling. This system is particularly suited for churches and houses of worship, as well as any stage or hall where large displays are frequently utilized but need to be discreetly stowed away when not in use.
Call 888 420 3200 or email [email protected]
Versatile Monitor Movement Across Work Area
Roller Tracks Perfect for Gantry Structures
Roller Tracks Perfect for Gantry Structures
The client, a US-based wiring harness and circuit board manufacturer, required a gantry-style mounting arrangement to facilitate lateral monitor movement over 60 inches. Given the intricate work demands of the production cell, it was crucial to ensure maximum positioning flexibility for the display. This solution employs a custom-length Roller Track rail, paired with a height-adjustable arm mounted on a drop-down pole, installed on the RT trolley, to achieve the desired range of motion and adaptability.
Call 888 420 3200 or email [email protected]
Under-Cabinet Workstation Mount
Versatile Computer System Mounting for Demanding Settings
Versatile Computer System Mounting for Demanding Settings
The adaptability of Ergomart's Roller Track shines through in this innovative workstation setup, where the rail remains concealed, mounted to the backside of a skirt on a cabinet or other OEM equipment. This design can also be utilized by suspending the workstation from the backside of a header wall or other similar structure. Featuring a drop pole extension on the back, this product grouping allows for a configurable length of up to 36" using the P118 (1 3/16" OD) pole. Moreover, for requirements demanding extended reach, our P192 large diameter poles (1.9" OD) allow for a significantly longer extension.
Call 888 420 3200 or email [email protected]
13' Roller Track with 180-degree Monitor Swivel
From Patio to Poolside: Seamless Track and Trolley Solutions Using Off-the-Shelf Parts
From Patio to Poolside: Seamless Track and Trolley Solutions Using Off-the-Shelf Parts
A discerning design firm approached us to provide a solution for a client who envisioned a seamless transition of a big-screen TV between their patio and poolside. This installation effortlessly accommodates the easy movement and repositioning of the TV, ensuring the perfect viewing angles whether lounging by the pool or relaxing on the patio. For those seeking extended linear travel, multiple Roller Tracks can be seamlessly joined. This solution underscores the versatile applications of Roller Tracks in residential settings, transforming ordinary spaces into dynamic entertainment arenas.
Call 888 420 3200 or email [email protected]
Seamless Retrofit and Expansion of Existing Installations
Innovative Tall Desk Mount Pole Options Offer Unique Solutions
Innovative Tall Desk Mount Pole Options Offer Unique Solutions
A client in the pharmaceutical sector utilized our Connect Beam to mount three monitors in 2016. Seven years later there was an expanded need. We created an add-on solution, positioning four additional monitors above the pre-existing three using 36" poles. Our capabilities far transcend the kits and assemblies catalogued on our website. We invite customers to reach out via phone or email to initiate a conversation regarding their unique ergonomic needs.
Call 888 420 3200 or email [email protected]
Tailored Quad-Monitor Arm for Enhanced Visibility
Bespoke Bracket Design Facilitates Unique Display Configuration
Bespoke Bracket Design Facilitates Unique Display Configuration
An individual customer with a rare visual impairment required four non-standard monitors that operate using only ambient light. Ergomart designed a custom bracket that was needed to properly group the displays to function as a single unit. The top two monitors were inverted, aligning their thinner upper bezels centrally to minimize visual interruption. With the monitors locked together like a single large display, the user could reposition all four simultaneously to best leverage changing ambient lighting conditions. This particular project is an excellent example of our capability to deliver personalized solutions, addressing distinct and specific customer needs.
Call 888 420 3200 or email [email protected]
Products Used In This Design
Elevated Triple-Screen Display on Roller Track
Versatile Mounting and Extension Options for Every Space
Versatile Mounting and Extension Options for Every Space
This solution overcomes the challenge posed by a kneewall extending beyond a 28" desk. The incorporated lifting arm facilitates a sit-stand transition, for the user, allowing the triple monitor array to be elevated or lowered over a range of 17". Our mounting solutions can adapt to varied workspace configurations, ensuring ergonomic comfort and operational efficiency regardless of the structural constraints.
Call 888 420 3200 or email [email protected]
Seamless Monitor and Speaker Positioning
Ultimate Solution for Dynamic Console Adjustments
Ultimate Solution for Dynamic Console Adjustments
The effortless linear travel facilitated by the Roller Track makes for an ideal platform for expansive mixing consoles. Whether shifting audiovisual equipment for enhanced eye contact within a studio or supporting focus to a specific console area, the fingertip adjustability of our roller trolleys satisfies every demand. Ergomart’s Roller Track system, along with its accompanying roller trolleys, not only accommodates a variety of monitor and speaker configurations but also simplifies the repositioning process, making workflow adaptations quick and hassle-free.
Call 888 420 3200 or email [email protected]

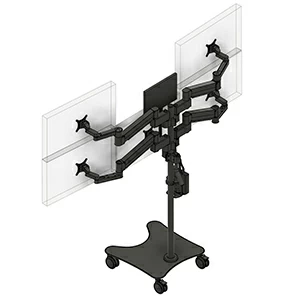

Versatile Multi-Mount Mobile Cart
Enhanced Stability with Optional Steel Ballast Plates
Enhanced Stability with Optional Steel Ballast Plates
This multi-monitor stand on an MCART mobile platform efficiently accommodates five monitors, a thin client holder, and a light source for a comprehensive workstation solution. With four articulating lifting arms, the outer monitors have a high degree of positioning flexibility. Two steel ballast plates beneath the base significantly enhance the stability of this ambitious setup, making it a reliable choice for varied needs. For any user who wishes to protect their vintage, glass or wood veneer furniture and have the option to move the workstation out of sight, the MCART is a desirable solution.
Call 888 420 3200 or email [email protected]

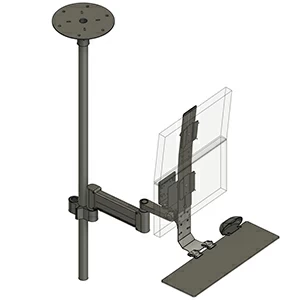

Budget-Friendly Dual Monitor Workstation
Attach a Comprehensive Computer Workstation to Any Sturdy Column
Attach a Comprehensive Computer Workstation to Any Sturdy Column
Our TRS9110 dual monitor setup, enhanced with a standard Ergomart dual bracket, seamlessly integrates into a distribution center environment. This versatile kit can be securely mounted on virtually any rigid vertical surface. With the ability to extend or fold backwards, it effortlessly adapts to the spatial needs, expanding and contracting the workspace envelope as required. This data entry station is not only ideal for industrial settings but also well-suited for healthcare environments.
Call 888 420 3200 or email [email protected]
Effortlessly Pivot Heavy Monitors to Desired Angles
Robust Mounting on a Versatile Vertical Track System
Robust Mounting on a Versatile Vertical Track System
This unique design facilitates a full 180-degree pivot for some of the largest and heaviest monitors. The wall-mounted track arm can be tucked left or right to lay the monitor flat against the wall, or extended to position the display at a perpendicular angle, either facing left or right. Like many of our optimized designs, this adaptation is constructed from existing componentry, and can accommodate VESA patterns up to 600 x 800 millimeters.
Call 888 420 3200 or email [email protected]
Customizable MCART Pole Lengths for Enhanced Accessibility
Effortless Adjustability with Low Monitor Positioning Capabilities
Effortless Adjustability with Low Monitor Positioning Capabilities
This particular MCART configuration has been tailored for a specialized learning environment catering to children with disabilities. Its robust mobile base, coupled with a lifting arm offering 14.5 inches of vertical travel, offers users a lower range of display interaction, fulfilling the unique requirements of this educational setting. The product grouping can even be modified further to allow the monitor's bottom edge to rest at floor height, ensuring utmost accessibility. Furthermore, this system can be componentized so that it provides an instant 28-inch vertical range. This feature not only facilitates interactive learning but also fosters an inclusive atmosphere by catering to the diverse needs of all users.
Call 888 420 3200 or email [email protected]
Triple Monitor Setup with Instant Repositioning
Easily Tuck Monitors Away for a Clear Desk Sightline
Easily Tuck Monitors Away for a Clear Desk Sightline
Many of our clients appreciate having their monitors accessible when necessary, yet prefer them tucked away during meetings or when not needed. With our design, the entire assembly can effortlessly pivot into a recessed nook or cabinet conveniently out of sight. This unique triple monitor lifting arm utilizes standard components from our inventory, making it a readily available solution for those seeking a neat and organized workspace. The elegant functionality of this setup is ideal for executive offices with premium furnishings, offering a blend of aesthetics and practicality.
Call 888 420 3200 or email [email protected]
Articulated Quadruple Monitor Mount
Flexible Multi-Monitor Array with Fold and Pivot Features
Flexible Multi-Monitor Array with Fold and Pivot Features
Designed for a control booth setting, this innovative mount enables seamless pivoting and repositioning of four monitors. Transitioning between monitor and window views is facilitated with ease, catering to a primary requirement. Additionally, the setup features a 14.5" simultaneous instant vertical lift, allowing the user to elevate the monitors just above the line of sight through the control room windows. This unique functionality makes it an adept solution not only for control booths but also for various environments requiring a blend of visibility and interactive display management.
Call 888 420 3200 or email [email protected]
Height-Adjustable Dual Monitor Workstation
Leverage Ergomart’s Modular Components for Tailored Workstation Solutions
Leverage Ergomart’s Modular Components for Tailored Workstation Solutions
This distinctive setup orchestrates a workstation that couples two landscape-oriented monitors with a 26" keyboard tray. With little more than a gesture, the user can effortlessly transition the entire assembly 16" vertically, in addition to fine-tuning both monitor and keyboard angles for personalized comfort and ergonomic alignment.
Call 888 420 3200 or email [email protected]
Parabola-Configured Six Monitor Modular Array
Lateral Shifting Monitor Grouping for Adaptive Mission Requirements
Lateral Shifting Monitor Grouping for Adaptive Mission Requirements
For this project undertaken for a US based DOD integrator, the objective was to create a wall-mounted setup with double-stacked monitors offering lateral adjustability along a 78-inch long Ergomart Roller Track. This setup accommodates six monitors, allowing for precise configuration and reconfiguration to meet the demands of a dynamic work environment. With the robust dual mount LS9137 poles, stacking 35-pound monitors is a breeze. Ergomart's industrial-grade components ensure that virtually any computer monitor is easily supported, resulting in designs that meld durability with adaptability.
Call 888 420 3200 or email [email protected]
Floor-Standing Over-Desk Monitor Mount
No-Contact Dual Monitor Arm Extension Over Desk
No-Contact Dual Monitor Arm Extension Over Desk
Faced with the unique challenge of vertically adjustable dual monitors without altering a high-value antique desk, a robust solution was devised using off-the-shelf Ergomart components. This design not only safeguards the desk but also facilitates a seamless, adjustable viewing experience for the user. The highly stable structure ensures that the monitors meet the positioning needs of the user while providing a dedicated placement for an attached tablet.
Call 888 420 3200 or email [email protected]
Precise Floor Mounting for 16 Monitors
Adaptable Floor Mounting System for Dynamic Configurations
Adaptable Floor Mounting System for Dynamic Configurations
This design successfully met the specifications of a project for the Defense Department, with monitors meticulously arranged in three stacked rows, and provisioned for expansion. Utilizing solely standard products, we were able to expedite a sample setup to aid the end user in making informed decisions swiftly. Beyond its primary application, this free-standing monitor wall is also versatile for deployment in industrial, showroom, and lobby environments.
Call 888 420 3200 or email [email protected]
End-Table Mounted Long-Reach Arm
Cabinet-Mounted Arm for Recliner-Based Computing
Cabinet-Mounted Arm for Recliner-Based Computing
This design caters to the growing number of individuals who enjoy working, streaming entertainment, or gaming from the comfort of their recliner or couch. Augmenting the Ergomart hardware components with a separate lap board as a keyboard tray allowed the user to realize a comprehensive solution ideal for their needs. The end table acts as a mounting base for the long-reach SAA4229 monitor arm, which can be conveniently folded up in front of the table when not in use. To ensure a stable arm base, ballast was added inside the end table by the user. In this setup, a 19" EC vertical track effectively distributes payload stress over a large footprint. Multiple attachment points, distributed from top to bottom, prevent any single fastener from pulling through the wall of the end table, which may not be designed to handle such loading, thereby ensuring a secure and durable mounting solution.
Call 888 420 3200 or email [email protected]
Adjustable Sit-to-Stand MCART
Versatile MCARTs for Supporting UPS Backups, CPUs, All-In-One Computers, Laptops, and Tablets
Versatile MCARTs for Supporting UPS Backups, CPUs, All-In-One Computers, Laptops, and Tablets
A popular enhancement of our MCART is the addition of a CPU/battery pack holder affixed to the lower rear section of the vertical pole. This configuration offers 16" of independent vertical adjustment for both the monitor and keyboard, enabling genuine sit-to-stand ergonomics. Select from six sizes of clamping CPU/battery brackets and an extensive range of customizable accessories to tailor the MCART to your specific needs.
Call 888 420 3200 or email [email protected]
Flexible Multi-Monitor Mounting Solution
Video Wall for Banking Data Center Application
Video Wall for Banking Data Center Application
Ergomart designed this multi-monitor solution to meet the unique needs of a banking data center with limited space at the mounting point. Utilizing off-the-shelf modular components, monitors of dissimilar sizes were seamlessly arranged to fit the required setup. This design affords forward adaptability as all displays can be easily repositioned or replaced to accommodate changing needs. This versatility makes it a valuable solution for commercial, showroom, lobby, security monitoring, and command and control applications.
Call 888 420 3200 or email [email protected]
Glide-Along Tablet Stand
Interactive Display Track for Museum
Interactive Display Track for Museum
The challenge was to create an interactive tablet display that could glide horizontally along a glass partition wall in a museum setting. Ergomart devised a solution by attaching an articulating tablet support to our robust stand and trolley system. This setup slides effortlessly along the Ergomart Roller Track, utilizing two 13-foot lengths of the track. With the use of standard parts, we delivered a system that precisely met the requirements. This unobtrusive yet highly effective solution is also suitable for other educational and showroom environments.
Call 888 420 3200 or email [email protected]
Versatile Pole Stand for Multi-Device Support
Adaptable Work Envelope for Comfortable Computing in Recliners
Adaptable Work Envelope for Comfortable Computing in Recliners
This design caters to the rising demand for comfortable and adjustable work-from-home setups. Incorporating a laptop holder, a large CPU bracket, alongside an independent keyboard tray arm and monitor arm, this pole stand solution offers a spectrum of positioning options to suit varying postures, from upright seating to full recline. The arms are designed for easy maneuverability, providing a clutter-free transition when not in use. While primarily aimed at enhancing work-from-home environments, similar configurations with multiple monitors have also found favor among gaming enthusiasts, reflecting the versatility of the design in meeting diverse ergonomic and recreational needs.
Call 888 420 3200 or email [email protected]
Expansive Bedside Mounting Solutions
Overcome Mounting Challenges with Inverted Arms and Customizable Drop Lengths
Overcome Mounting Challenges with Inverted Arms and Customizable Drop Lengths
This monitor arm is outfitted for overhead mounting. It comes with a custom length drop-down extension. This design includes broad lateral reach provided by the heavy duty horizontal extension. Whether working from a bed or other constrained space, this mounting solution delivers optimal ergonomic performance.
Call 888 420 3200 or email [email protected]
Transition Monitor Between Workspaces
Extended Roller Track Facilitates Dual Work Area Accessibility
Extended Roller Tracks Facilitate Dual Work Area Accessibility
This ingenious solution empowers the user to effortlessly glide the monitor left and right along the roller track, attached to the SAA7000 arm that offers 16" of vertical travel. With a custom vertical shaft in place, the monitor can be lowered an additional 18 inches, positioning the track height at 26" above the monitor's center when fully extended downward. This particular design shines in compact living spaces — the user, nestled in a small studio apartment, effortlessly transitions the monitor between the bed and desk areas, embodying a seamless blend of comfort and functionality.
Call 888 420 3200 or email [email protected]
Overhead-Mounted KPS Workstation
Effortlessly Adjustable KPS for Streamlined Operations
Effortlessly Adjustable KPS for Streamlined Operations
This Kitchen Production System (KPS) support is designed to mount on header walls above pass-through openings, accommodating a thin client, bump bar, and monitor. Optional printer brackets are also available to enhance functionality. Besides kitchen applications, this versatile setup is also suitable for wall-mounting workstations above packing stations, shipping areas, technical production lines, and work tables. The mounting ensures a secure and elevated position and the hyper-adjustability facilitates ease of movement and use for an optimized workflow in various operational settings.
Call 888 420 3200 or email [email protected]
Clamping Drop-Down Arm
Versatile Monitor Arms for Square Tubing and 80-20 Mounting
Versatile Monitor Arms for Square Tubing and 80-20 Mounting
Ergomart provides a variety of space-saving work positioning solutions, enabling the placement of critical equipment and monitors well below their mounting points on a range of struts and supports across workstations. In this adaptation, the arm mounting clamp is affixed to a horizontal member of a technical workstation, allowing the touchscreen display to be lowered to a comfortable working height just in front of the shelf.
Call 888 420 3200 or email [email protected]
Products Used In This Design
POS1512 Reversible Overhead Dual Stand
Modular POS1512 with Horizontal Extensions for Monitors up to 42"
Modular POS1512 with Horizontal Extensions for Monitors up to 42"
With custom-length poles, the POS1512 mount offers a multitude of options for back-to-back ceiling and overhead mounting solutions. Utilized optimally in pass-through windows at restaurants, this design facilitates seamless communication and product flow. Custom P118 pole lengths of up to 72 inches are available. The versatility of the POS1512 mount lies in its adaptability; it effortlessly accommodates horizontal extensions and larger monitors thereby enhancing its applicability across diverse settings.
Call 888 420 3200 or email [email protected]
Products Used In This Design
POS1512 Vertical Headwall Mount for Pass-Throughs
High-Angle Tilter Mechanisms Offer 45 Degrees of Downward Tilt
High-Angle Tilter Mechanisms Offer 45 Degrees of Downward Tilt
This design is well suited to its primary application in pass-through windows within restaurants, as a simple yet effective adaptation of our standard POS1512 mount. This configuration lends itself well to mounting on most header walls, with displays facing opposite directions, proving its versatility in hallways and diverse work settings. The standard tilter mechanisms enable a 45-degree downward tilt while reverse tilter mechanisms are capable of positioning monitors parallel and facing directly downward to the floor.
Call 888 420 3200 or email [email protected]
Extended Track and Trolley for Heavy-Duty Monitor
Overhead Monitor Mount with Ample Tilt Adjustment and Wire Management
Overhead Monitor Mount with Ample Tilt Adjustment and Wire Management
Our client required a 25-foot-long roller track attached to a ceiling structure along with an integrated wire management system. Ergomart's drag chain based wire manager channel protects cabling and extends the working life of wiring that might otherwise be compromised. The drop pole, extending 96" toward the floor, suspends a 75 lb monitor, which glides smoothly left to right along two 150" Roller Track sections. The monitor mount component includes 70 degrees of tilt adjustment ensuring optimal viewing angles.
Call 888 420 3200 or email [email protected]
Dual-Sided Rail for Expansive Workspace
Flexible Modular Components Cater to Diverse Application Needs
Flexible Modular Components Cater to Diverse Application Needs
This 8-foot wide by 6-foot tall mobile testing enclosure demanded a solution for positioning either an all-in-one computer or a laptop close to multiple displays spanning its full width on both sides. Ergomart delivered a dual roller track setup featuring height-adjustable drop-down arms, facilitating an easy placement of a touchscreen (as depicted in the back) or a laptop (at the front) right next to the data displays. The modular nature of this setup not only accommodates various equipment configurations effortlessly but also caters to the need for extra reach and dropdown adjustments.
Call 888 420 3200 or email [email protected]
Truss Mounted Arm for Assembly Line
Overcome High Ceiling Challenges with P192 Pole Solutions
Overcome High Ceiling Challenges with P192 Pole Solutions
This design was tailored for a factory floor setting. A 6-foot pole, affixed to an overhead beam, facilitates the mounting of monitors slightly above the work envelope. This setup caters to standing workers by offering individualized height and angle adjustments for optimal viewing comfort. A modest roll-out of four such stations were deployed, demonstrating that even small projects can be ergonomically and economically accommodated using Ergomart's extensive toolbox of ready-to-configure modular components.
Call 888 420 3200 or email [email protected]
Versatile Equipment Mounting on Roller Track
Dual Rail System with Seamless Cable Management
Dual Rail System with Seamless Cable Management
This design showcases a versatile multifunctional mounting platform - ideal for a myriad of applications. With the option to custom order poles up to 20 feet long from Ergomart, a diverse range of devices and technology can be mounted onto our Roller Track system - from security cameras and monitoring equipment to clusters of video displays. The ease of linear movement, integrated wire management raceways, and Ergomart's extensive catalog of adaptable, modular components converge to provide the perfect solution for unique mounting challenges.
Call 888 420 3200 or email [email protected]
Heavy-Duty Overhead Multi-Mount System
Versatile P192 System for Secure Attachment to Various Structural Supports
Versatile P192 System for Secure Attachment to Various Structural Supports
A leading steel manufacturer in the USA needed a robust solution to mount 16 screens overhead for real-time process monitoring. Utilizing Ergomart's heavy-duty components, a multi-mount system was configured to securely suspend a total payload exceeding 200 pounds. The P192 system provides the flexibility to attach to a range of structural supports including header walls, girders, purlins, rafters, joists, and Unistrut, ensuring a stable and reliable setup for critical monitoring tasks.
Call 888 420 3200 or email [email protected]
Custom Drop Down Extension on SAA2718
Versatile Display Mounting for Varied Height Requirements
Versatile Display Mounting for Varied Height Requirements
This design is a response to the frequent request for height-adjustable lifting arms with the capability of extending downward well below their mounting points on walls or cabinets. The drop-down extension featured in this design is available in custom lengths, catering to a broad spectrum of height requirements. The SAA2718 arm, combined with the tailored drop-down extension, embodies a comprehensive solution to complex display mounting challenges, reflecting the versatility and adaptability inherent in Ergomart's offerings.
Call 888 420 3200 or email [email protected]
Drop Extension Monitor Arm
Versatile Lowering Solution for Optimal Display Positioning
Versatile Lowering Solution for Optimal Display Positioning
This optimized drop extension solution was mounted on a shelf edge, serving to lower the monitor to the desired viewing height, fulfilling the need for an unobstructed workspace on the 30" high desk. When fully lowered, the bottom of the monitor rested about 5" from the surface, while the adjustable design allowed for elevation up to 22" above the desk for standing usage. This arrangement demonstrates seamless transitioning between sitting and standing viewing positions.
Call 888 420 3200 or email [email protected]
Products Used In This Design
Linear Tracking Truss Mounted Solution
Adjustable Workstation for Varied Heights in Manufacturing Settings
Adjustable Workstation for Varied Heights in Manufacturing Settings
This innovative setup features a roller track suspended from two poles, rigidly anchored to a ceiling structure, facilitating lateral movement of the computer workstation over a span of 78" when accounting for arm extensions. Configured to accommodate users in manufacturing environments, it allows for seamless transitions between positions while catering to standing workers of all heights. Even in industrial spaces with expansive open areas and 20-foot ceilings, Ergomart delivers movable computer workstations and monitor mounts without necessitating attachment to the floor or wall. This design epitomizes flexible workspace solutions conducive to varied operational demands.
Call 888 420 3200 or email [email protected]
Adjustable Arm Suspended from Down-Facing Rail
Versatile Track Lengths Under Cabinet Shelf Ranging from 2' to 13'
Versatile Track Lengths Under Cabinet Shelf Ranging from 2' to 13'
Engineered for under-cabinet installation, this design facilitates lateral movement of a monitor beneath a cabinet in dental operatory settings. The 39-inch track enables the arm to glide smoothly across a span of 23", offering both lateral articulation and reach adjustment. While this setup caters to specific positioning needs at a fixed height, we offer similar solutions that also provide instant height adjustment.
Call 888 420 3200 or email [email protected]
Quad Kiosk: Floor-to-Ceiling Pole System
Laboratory High-Density Workstation Cluster
Laboratory High-Density Workstation Cluster
This versatile design, while suitable for multiple applications, was tailored upon request for a medical school laboratory setting. The setup caters to dense workstation arrangements, enabling students to transition seamlessly between computer workstations and lab tables, predominantly in a standing posture. Offering up to 18" of instant vertical adjustability, the lifting arm-based system aptly meets the requirements. This floor-to-ceiling mounting assembly is not only conducive to educational settings but also serves well as a kiosk for software presentations, gaming conventions, or any scenario demanding interactive computer engagement where space efficiency is a pivotal consideration.
Call 888 420 3200 or email [email protected]
Ceiling-Mounted Monitor Arm on Rail
Linear Positioning System for Mobile Command Environments
Linear Positioning System for Mobile Command Environments
This assembly is tailored for mobile settings, where a roof-mounted Roller Track rail is oriented downwards. The height-adjustable arm is affixed to a trolley-mounted pole, ensuring secure positioning while the vehicle is on the move. Upon parking, the arm can be easily unlatched from its tie-down, offering versatile monitor positioning. This space-efficient mounting design preserves room and access for other equipment along the upper walls, making it a valuable asset in cramped or busy environments.
Call 888 420 3200 or email [email protected]
Handle-Operated Frame Mounted Display Arm
Streamlined Monitor Arm Adaptation for 80/20 Framework in Manufacturing Setting
Streamlined Monitor Arm Adaptation for 80/20 Framework in Manufacturing Setting
A European OEM sought a solution for positioning a touchscreen monitor arm using a handle in a bustling production environment. The MKIT-M, when coupled with a simple plate, facilitates effortless mounting to an 80/20 type T-slot Framing System, making the setup both straightforward and cost-effective. Ergomart excels in tailoring solutions to diverse horizontal structures and framing systems, showcasing a blend of adaptability and functionality. This particular setup exemplifies how ease of operation and flexible mounting options can converge to meet precise operational needs in various industrial scenarios.
Call 888 420 3200 or email [email protected]
Overhead Dual Monitor Dropdown Mount
Adaptive Dual Display System for Industrial Workspaces
Adaptive Dual Display System for Industrial Workspaces
Overhead mounting solutions are sought after for optimizing space and ensuring a clear viewing or work area below. This particular design works well in manufacturing settings, facilitating the effortless gliding of stacked monitors back and forth over an extensive work area. The linear movement feature enables precise positioning, enhancing workflow and adaptability. This system exemplifies a perfect blend of functionality and ease of use, making it a viable option for various industrial and manufacturing environments.
Call 888 420 3200 or email [email protected]
ViewTracks attach to 80/20 and Square Tubes
Cost-Effective Equipment Management on T-Slot Framing and Unistrut
Cost-Effective Equipment Management on T-Slot Framing and Unistrut
Our versatile workstation design effortlessly accommodates dual monitors and a laptop tray, proving to be the perfect solution for integration into an 80/20 modular constructed work environment. Many of our core products have been adapted to fit 80/20 extrusions - both horizontally and vertically.
Call 888 420 3200 or email [email protected]
Horizontal Glide Laptop and Workstation Solution
Swiftly Traverse Broad Work Areas with Devices or Equipment
Swiftly Traverse Broad Work Areas with Devices or Equipment
The Roller Track System unfolds a realm of possibilities with its dynamic lateral adjustability, epitomizing modularity and scalability. This particular design showcases a 13-foot rail, hosting a streamlined computer workstation alongside a laptop tray. The beauty of the Roller Track system lies in its adaptability and modular nature; the same 13-foot rail can effortlessly transition to support a staggering parabolic monitor wall, accommodating 24 27-inch monitors in four neatly arranged rows! Whether it's a minimal setup or a more complex assembly, the Roller Track System stands as a testament to flexible workspace solutions.
Call 888 420 3200 or email [email protected]
Versatile Laptop Tray Add-on
Effortlessly Attach Laptops to P192 or Poles Between 1.5" and 2.0"
Effortlessly Attach Laptops to P192 or Poles Between 1.5" and 2.0"
Initially, a medical school opted for an Ergomart MCART setup, incorporating a keyboard tray and monitor arm to facilitate a mobile workstation. As the need arose for including an additional laptop, Ergomart was at the ready with the necessary add-on equipment to accommodate the MCART's extended functionality. This scenario underscores the modular and adaptable essence of our product catalog that allows for seamless expansions and reconfigurations of existing installations.
Call 888 420 3200 or email [email protected]
Overhead Sliding Mount for Large Monitor
Effortlessly Elevate and Shift Essential Workspace Equipment
Effortlessly Elevate and Shift Essential Workspace Equipment
This design utilizes a 10-foot Roller Track engineered specifically for header wall integration. Built using readily available in-stock components, this setup positions the center of the VESA mounting point about 14 inches below the center of the rail, seamlessly facilitating the overhead mounting of a large monitor. This mounting approach also enables broad positionability for other essential equipment such as computers, UPS systems, controllers, power strips, and even printers.
Call 888 420 3200 or email [email protected]
Elevating Guest Interaction through Adjustable Features
Versatile Touch Screens Tilt from 45° Downward to 50°, Accommodating All Heights
Versatile Touch Screens Tilt from 45° Downward to 50°, Accommodating All Heights
This innovative Point of Sale solution supports easy customer engagement by offering ergonomic touch screen accessibility on both sides of the transaction. An added outboard tray conveniently supports a printer or card reader, creating a blend of functionality and user-centric design. Our adjustable system adapts to every user's height, ensuring a seamless and smooth transaction.
Call 888 420 3200 or email [email protected]
Products Used In This Design
Floor-Standing Workstation with Integrated Shelf
Adaptable P192 Stands Cater to Evolving Operational Demands
Adaptable P192 Stands Cater to Evolving Operational Demands
This specialized workstation is designed for use in dental hygiene workstations, with the pole stand securely bolted to the floor. A shelf between the monitor mount and the keyboard tray offers a convenient space for dental instruments, keeping them close at hand. The design is a blend of ergonomics and functionality, providing seamless access to essential tools.
Call 888 420 3200 or email [email protected]
Versatile Courtroom Jury Box Vertical Slide Mount
Effortlessly Adjust Critical Displays Up and Down
Effortlessly Adjust Critical Displays Up and Down
The adaptability of Ergomart's LeverLift, a vertically adjustable monitor and workstation solution, is ideal for specialized applications. For this project, a courtroom jury box, users can effortlessly lift and tilt the monitor as needed, then lower it beneath the knee wall or jury box wall to maintain an unobstructed view of the courtroom proceedings.
Call 888 420 3200 or email [email protected]
Products Used In This Design
Extended Reach Monitor and Equipment Arm
Ideal for Examination Rooms and Patient Care Areas
Ideal for Examination Rooms and Patient Care Areas
This design is capable of supporting up to 30 lbs with a lateral reach extending up to 66". Its vertical travel of 28" stands out, making it one of the most flexible and versatile monitor arm solutions available. Particularly useful in healthcare scenarios, it caters to patients confined to beds or facing other mobility challenges, ensuring optimal screen or equipment positioning. Beyond healthcare, it's a robust choice for technical production environments with expansive work areas. Its compatibility extends to lighter payloads as well, such as cameras and various medical devices, broadening its usefulness across multiple fields.
Call 888 420 3200 or email [email protected]
Extended Reach Laptop Arm
Unmatched Vertical and Horizontal Adjustability for Healthcare, Laboratory, and Industrial Environments
Unmatched Vertical and Horizontal Adjustability for Healthcare, Laboratory, and Industrial Environments
This design provides extreme positionability suitable for a laptop, analysis equipment, or other scientific instruments. The extensive reach and lateral movement allow users to interact with and reposition the equipment with precision, whether near or around an object. Ideal for scenarios where meticulous positioning is vital, this setup has applications in a variety of environments including healthcare, laboratory, and industrial settings.
Call 888 420 3200 or email [email protected]
Quad Monitor Movable Workstation
Linear Track Multi-Monitor Workstation with Height-Adjustable Keyboard Tray
Linear Track Multi-Monitor Workstation with Height-Adjustable Keyboard Tray
A prominent engineering firm specializing in renewable energy sought a versatile workstation solution to accommodate four monitors in a testing lab setup. Leveraging Ergomart's Roller Track, a streamlined setup was assembled, allowing lateral movement of the workstation while maintaining a compact footprint. The integration of LS1512D pole-mounted monitors with a 7000AKP adjustable keyboard arm supported a centralized control station, enabling seamless interaction across four computers with a single keyboard and mouse. The keyboard tray arm offers over 15 inches of independent vertical adjustability.
Call 888 420 3200 or email [email protected]
Adjustable Monitor Arms on Floor Stands
Enhancing Family Gaming Experiences
Enhancing Family Gaming Experiences
This setup comprises floor stands equipped with height-adjustable arms, tailored for a family keen on enjoying video games together in their living room. The modular design, assembled from readily available off-the-shelf components, makes it a straightforward yet effective solution for collaborative gaming or other interactive activities. The adaptability in height ensures a comfortable viewing angle for each player, fostering a shared gaming experience that's both engaging and ergonomic. A family that games together, stays together!
Call 888 420 3200 or email [email protected]
Vertical Track Cabinet Mount
Versatile Pivoting Arms for Precise Monitor Repositioning
Versatile Pivoting Arms for Precise Monitor Repositioning
Employed within a steel mill's production environment, this design features a cabinet-mounted vertical track supporting three height-adjustable monitors. These monitors easily pivoted between two primary positions—either perpendicular or parallel to the cabinet's front—perfectly aligned to the operational demands of the setting.
Call 888 420 3200 or email [email protected]
Heavy-Duty Surface Mounted Multi-Monitor System
Dual P192 Poles Securely Hold 8 Monitors
Dual P192 Poles Securely Hold 8 Monitors
This design features two Roller Tracks mounted on heavy-duty schedule 80 P192 poles. The system is engineered to support large multi monitor clusters with ease. At Ergomart, we can customize pole lengths to precise design specifications, eliminating any excess material and ensuring an efficient, uncluttered workspace. Although showcased as a desk-mounted setup, this system can also be floor-bolted with extended poles for additional flexibility.
Call 888 420 3200 or email [email protected]
Monitor Cart with Top Mount Arm
Versatile MCART Solutions for Labs, Testing Facilities, Manufacturing, and Healthcare Settings
Versatile MCART Solutions for Labs, Testing Facilities, Manufacturing, and Healthcare Settings
This MCART showcases a sleek top-mounted arm design, creating a fully mobile computer workstation ideal for dynamic environments. The integrated CPU holder is versatile, accommodating thin clients, batteries, computers, and other box-shaped peripherals. The brackets on this workstation are designed for attachment to both the front and the back of the vertical pole, offering enhanced configurability to meet varying operational needs.
Call 888 420 3200 or email [email protected]
Maximized Adjustability with Lectern Mount
Sleek Monitor Concealment Beside or Behind Lectern
Sleek Monitor Concealment Beside or Behind Lectern
Ergomart has provided a number of lectern-mounted display arm solutions, typically engineered to maintain a low-angle position just above the surface while providing the flexibility to fold below and out of sight. In this particular setup, the display remains effortlessly accessible to the lecturer when needed, and can be folded down and around to the back, minimizing its visual presence when not in use.
Call 888 420 3200 or email [email protected]
Quadruple Monitor MCART Workstation
Tailored Mobile Computer Workstation Design
Tailored Mobile Computer Workstation Design
A firm specializing in energy infrastructure employed this design, which extends the fundamental MCART blueprint to include four highly adjustable mount positions for the displays. This solution encompasses a CPU holder and a height-adjustable keyboard tray, showcasing the MCART platform's versatility. Commonly featured in industrial, healthcare, and showroom settings, this mobile workstation exemplifies a tailored solution meeting distinctive requirements.
Call 888 420 3200 or email [email protected]
Custom Ceiling-Mounted Monitor System
Seamless Integration and Flexible Monitor Positioning for Professional Spaces
Seamless Integration and Flexible Monitor Positioning for Professional Spaces
In this application, the Roller Track and Wire Management Trough are integrated above the ceiling tiles, offering a streamlined and unobtrusive design. A two-inch slot beneath the track provides the necessary space for the monitors to be effortlessly repositioned to the center of the desk when in use and back to the edge when not. Ergomart custom-machined the pole to the required length, tailoring it to the workspace. The screens can be rotated in the direction of the guest. This system is entirely constructed from components that are readily available from our broad inventory.
Call 888 420 3200 or email [email protected]
I-Beam Mounted Multi-Monitor Array
Truss and Beam Mounted Monitor Display in Quad Configuration
Truss and Beam Mounted Monitor Display in Quad Configuration
Ergomart poles and stands offer versatile attachment options, suitable for a range of structural elements. They can be either floor-mounted or surface-mounted, or even suspended from above. In this specific case, we seamlessly integrated third-party components to adapt to an I-beam. The setup includes two LS1512 arm sets, which enable extended reach, left/right swivel, and tilt functionality. Our standard tilter mechanisms comfortably support monitors weighing up to 35 pounds each.
Call 888 420 3200 or email [email protected]
Multi-User Pole Stand Kiosk
Floor to Ceiling Mounted Workstations for Standing Security Staff
Floor to Ceiling Mounted Workstations for Standing Security Staff
A multinational ports and terminal operator needed a durable, floor-to-ceiling mounting solution for their port monitoring workstations. Ergomart provided custom sized poles paired with Roller Tracks for a dual-sided operation. The Roller Tracks were manufactured to the specific dimensions required for this project. Thanks to the modular design of this system, the customer gained the flexibility to adapt and modify the monitoring setup. This adaptability is especially beneficial for facilitating future workstation adaptations responding to changing or expanding terminal operations.
Call 888 420 3200 or email [email protected]
Customizable LeverLift Monitor Wall Systems
Versatile Workstation Solutions for Multiuser Environments
Versatile Workstation Solutions for Multiuser Environments
The LeverLift System offers a range of standard dual lift workstation configurations, ideal for multiuser environments. Beyond its standard offerings, the system's inherent modularity excels in specialized applications, such as monitor wall setups. For a leading multinational medical products corporation, we tailored an installation in their lab environment, featuring 16 LeverLift wall tracks supporting a total of 64 monitors across two walls. This installation, with 48 monitors on the main wall and 16 on an adjoining wall, met the need for instant monitor access and incorporated advanced wire management features essential for the project.
Since 2007, Ergomart has collaborated closely with engineers and designers across various divisions of this corporation, ensuring tailored solutions that meet their evolving requirements.
Call 888 420 3200 or email [email protected]
Products Used In This Design
Wrap-Around Workstation for Lab Equipment
Ergonomic Integration for Unique and Specialized Workspaces
Ergonomic Integration for Unique and Specialized Workspaces
Our team often receives requests for advanced computer workstation solutions designed for various lab and test equipment. In one such case, we configured a wrap-around mounting solution that attached to the back side of the upper cabinet of an Instron 3400 Universal Material Properties Testing Machine, "capable of measuring tensile, compression, flex, peel, puncture, friction, and shear properties." Our basic 3-D model demonstrated the placement of the mounting rail, monitor arm, and keyboard arm in relation to the device, showing how our solution would fulfill their specific needs for human-controller positioning and interaction.
Call 888 420 3200 or email [email protected]
Custom Bracket Designed for Medical Equipment
Our Designs Can Accommodate Scanner Guns, Special Fixtures and Medical Devices
Our Designs Can Accommodate Scanner Guns, Special Fixtures and Medical Devices
This custom design met several requirements for an Original Equipment Manufacturer (OEM), focusing on mounting to a medical device and supporting its auxiliary equipment. The bracket was equipped with a camera mount, lighting attachment, side handles, and a lower handle. The entire assembly was designed to attach to the SAA2718 monitor arm, which in turn, was securely mounted to a larger OEM cabinet.
Call 888 420 3200 or email [email protected]
Products Used In This Design
Mobile workstation with tablet holder
Accessories can be added to monitor carts
Accessories can be added to monitor carts
Occasionally, integrating a simple third-party component completes an otherwise ideal Ergomart solution. We're always open to incorporating externally produced, readily available parts if they help us deliver a full feature solution. In a recent project, our customer required an interface for a Microsoft Surface Pro computer. We selected a universal quick-release tablet holder that could easily attach to our thin client bracket, utilizing a standard 100mm interface hole pattern. The thin client CPU holder served the secondary purpose as a power transforrmer cradle. Notably, our pole-mounted CPU holders are frequently used to support onboard battery backups as well other devices. The cart's generous base design allows ample room for various types of ancillary equipment.
Call 888 420 3200 or email [email protected]
Track-Mounted Dual Monitor Angled Workstation
Combine Ergomart's Modular Products for Unique Applications
Combine Ergomart's Modular Products for Unique Applications
Ergomart's off-the-shelf components are often the key to providing a quick and easy solution for enhanced positioning. In this instance, a dual monitor bracket, coupled with an extra HD extension, transformed a standard EC Track computer workstation. This adaptation allowed for the workstation to be positioned at a 90-degree angle from the wall.
Call 888 420 3200 or email [email protected]
Independently Traveling Dual Pole Stands
Adaptable Mounting System Ensures Use with All Potential Display Choices
Adaptable Mounting System Ensures Use with All Potential Display Choices
A custom desk manufacturer approached us with a unique challenge: to create a design that could support two monitors of a yet to be determined size. The end user, a visually impaired nonagenarian, required a solution where the final monitor size would be selected through a trial-and-error process. Our solution involved tracks and pole-mounted articulating arms, which provided the necessary flexibility. This setup allowed the team to effortlessly adjust both the position and angle of the monitors, accommodating any size chosen during the selection process.
Call 888 420 3200 or email [email protected]
Products Used In This Design
A Tailored Experience for Every Customer
Ergomart Offers a Broad Set of Components to Deliver the Right Solution
Ergomart Offers a Broad Set of Components to Deliver the Right Solution
Ergomart is committed to guiding customers toward the most suitable solution, a process that may involve multiple design iterations. Through the use of CAD models, 3D PDFs, or demo products we produce, any deficiencies or undesired characteristics can be identified and addressed. For one particular customer, the initially proposed desk-mounted model served as a precursor to the final solution. It became evident that utilizing similar components, but attached to the adjacent wall, would create a more effective and efficient work environment for their needs.
Call 888 420 3200 or email [email protected]
Products Used In This Design
7 Monitor, Single Pole Desk Stand
Multi-Display Mounting System with Adjustable Concave Alignment
Multi-Display Mounting System with Adjustable Concave Alignment
For a U.S. government project requiring TAA-compliant components, we developed a 2/3/2 mounting solution utilizing our off-the-shelf Connect beams. This system is anchored to a custom-length steel tube with a 1.5-inch interior diameter, accommodating AC wires and data cabling for seven monitors. The choice of the Connect system offers extensive freedom in aligning, orienting, tilting, and rotating the monitors. Moreover, the Connect's segmented tracks feature front and back mounting channels, enabling straightforward integration of wire management systems and computer peripherals.
Call 888 420 3200 or email [email protected]
Dual Arm Hyper-Flexible Track Mount
Roller Track System Enables User to Shift Work Envelope Instantly
Roller Track System Enables User to Shift Work Envelope Instantly
This dual monitor arm solution is built using standard components from our inventory. And it can be modified and reconfigured as needs evolve, without incurring the cost of an entirely new system. For example, if a customer decides to upgrade from the original 10-pound, 24-inch monitors to larger 35-pound monitors, the lifting arms can be easily upgraded. Additionally, if the new monitors are wider, one or two HDEXT0450 type horizontal extensions can be incorporated to accommodate the size.
For this specific application, the customer opted for the MKIT-V mount base, which can be positioned along the Roller Track as needed, although it is typically not moved frequently. If a setup requires instant or ongoing lateral adjustment, the MKIT-Q gliding trolley would be the more suitable choice.
Call 888 420 3200 or email [email protected]
